zOLD Backup, Arri reflextion, DMX5

Description

In: Shucko 230V
In/Out: DMX5

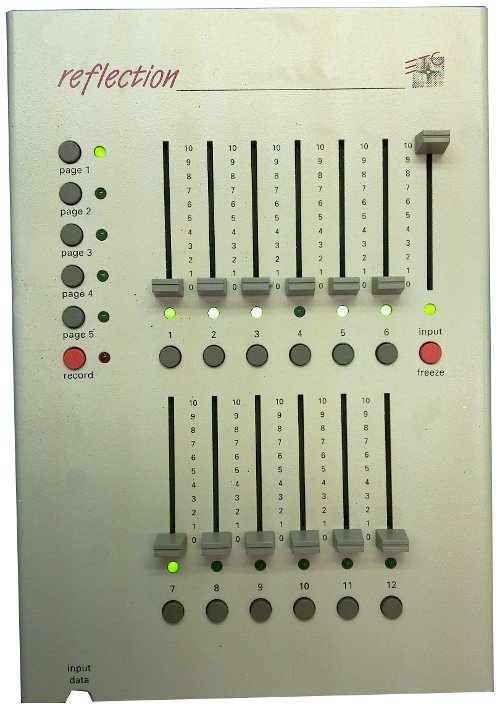

Reflection unit.

Question:

How to slave two unit together

Answer:

Remove Jumpers on the right of the large ribbon cable. Labeled LK2 and LK3
Add jumper at "C" to the left of the large ribbon cable, Remove at "D"
Use a Straight Serial cable, using Pins 1-3 only.
Cable to be no longer than 8 feet. The shorter the better
Software in both units must be 2.07 at IC5
Cable Pin out is:
1 = Common
2 = DATA
3 = CLOCK
Must set a unique ID number for each unit
Slave face panel becomes inactive
