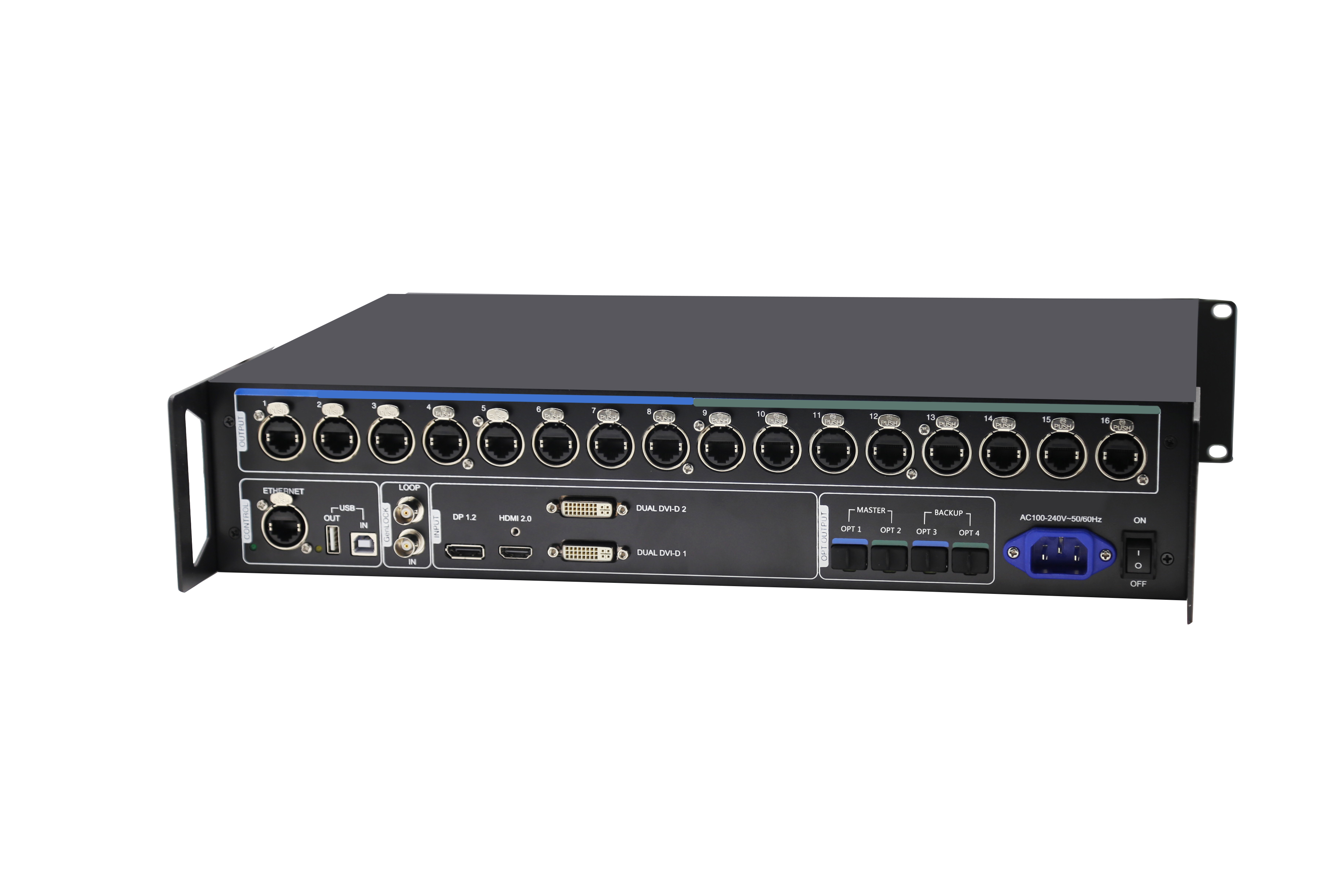

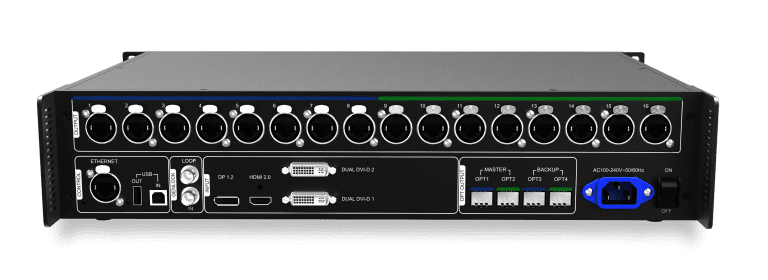

LED Processor, SendingCard NovaStar MCTRL4K

Description

Features

Complete video input interfaces: DP1.2 x 1, HDMI2.0 x 1, dual-link DVI x 2;
Supports 16-channel Neutrik Gigabit Ethernet outputs and 4-channel optical fiber outputs and maximum loading capacity of a single unit up to 3840x2160@60Hz;
Supports two operating modes during dual-link DVI input: mosaic and multi-card;
Innovative design to enable smart configuration which has greatly shortened the time for stage preparation;
NovaStar's G4 engine to create stable and flicker-free pictures without scanning lines, and bring smooth images with a good sense of layering;
Supports NovaStar's latest pixel-by-pixel calibration technology, the process of which is fast and efficient;
Enables white balance calibration and color gamut mapping based on the different features of LEDs on the display to ensure the real restoration of color;
Screen configuration can be done at any time without PC;
Manual adjustment of screen brightness, which makes it much easier and quicker;
Multiple controllers are able to be cascaded for uniform control

Product Type: Controller
Input Resolution: up to 3840x2160@60Hz
Capacity: up to 3840x2160@60Hz
Supply Voltage: AC-100-240V-50/60HZ
Control Method: Web
Video Interface: DP1.2 x 1, HDMI2.0 x 1, dual-link DVI x 2
Control Interface: ETHERNET,USB
Viedo Format: AL/NTSC/HD Formats
Output Interface: Neutrik EtherCONx16/OPT Portsx4 ( opt. modules not included )
Bit Depth Of Video Resource: up to 10 Bits
