Monitor 32" Samsung, ME32C

Description

Display
H-Scanning Frequency 30 ~ 81kHZ
Maximum Pixel Frequency 148.5MHz
V-Scanning Frequency 48 ~ 75HZ
Panel
Diagonal Size 32"
Type 60Hz e-LED BLU
Resolution 1920 x 1080 (16:9)
Pixel Pitch (mm) 0.12125 (H) x 0.36375 (V)
Active Display Area 698.4 (H) x 392.85 (V)
Brightness 450nit - TBD
Contrast Ratio (Dynamic) 5000:1
Viewing Angle (Horizontal/Vertical) 178:178
Response Time (G-to-G) 8ms
Display Color 16.7M
Color Gamut 72%
Connectivity
Input RGB Analog D-SUB, DVI-D, Display Port 1.2
Video HDMI1, HDMI2, Component (CVBS Common)
Audio Stereo mini Jack
Output RGB DP1.2 (Loop-out)
Audio Stereo mini Jack
External Control RS232C (in / out) thru stereo jack, RJ45
External Sensor IR, Ambient Light
Mechanical Specifications

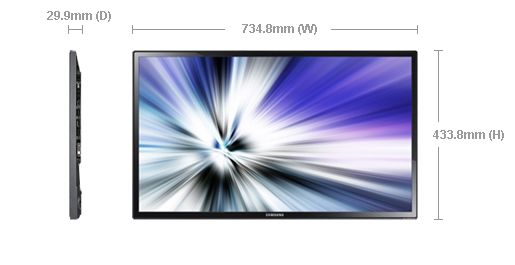

Dimension Set Dimension (WxHxD) 734.8 x 433.8 x 29.9mm
Package Dimension (WxHxD) 833 x 518 x 120mm
Weight Set Weight 6.7kg
Package Weight 8.3kg
VESA Mount 200 x 200mm
Protection Glass Optional
Stand Type Foot Stand (Optional)
Media Player Option Type Embbeded, SBB-A (Attadched)
Operation
Operating Temperature 0°C ~ 40°C
Humidity 10 ~ 80%
General Features
Key Slim & Light LFD with Built-in MagicInfo Lite
Special Magic Clone (to USB), Auto Source Switching & Recovery, Lamp Error Detection, Super Clear Coating, Temperature Sensor, RS232C / RJ45 MDC,Plug and Play (DDC2B), PIP / PBP, Video Wall (10 x 10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (Supporting 2 x 2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F/W update, Clock Battery (80hrs Clock Keeping) Built In MagicInfo (Lite, Premium-S, Videowall-S)
Internal Player Processor Cortex-A9 1GHz Dual Core CPU
On-Chip Cache Memory L1 (I/D): 32KB / 32KBL2 (Unified): 512KB
Clock Speed 1GHz CPU Dual
Main Memory Interface 1GBDual 32bit DDR3-667 (1,333MHz)
Graphics 2D & 3D Graphics Engine - Up to 1920 x 1080. 32bpp - Supports OpenGL ES
Storage (FDM) TBD - 4GB (1.2GB Occupied by O/S, 2.8GB Available, )
Multimedia Video Decoder - MPEG-1/2, H.264 / AVC (Dual) - VC-1, JPEG, PNG Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc.
IO Ports USB 2.0
Operating System Linux
Power
Power Supply AC 100 - 240V ~ (+/- 10%), 50 / 60Hz
Power consumption Off Mode less than 0.5Watts
On Mode TBD (Max) / TBD (Typical) / 409.2 (BTU)
Sleep Mode Less than 0.5Watts
Type Internal
