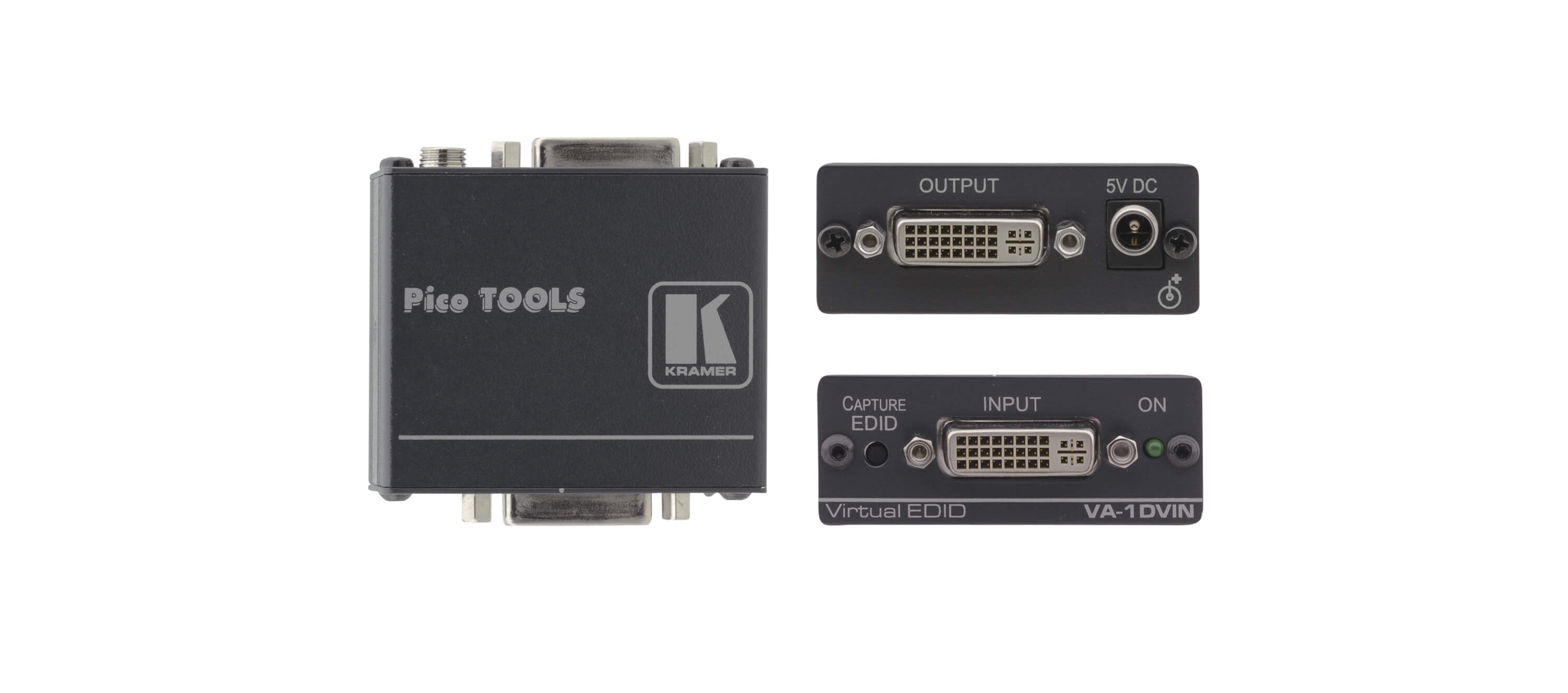

EDIT emulator, Kramer VA-1DVIN

Description

The VA-1DVIN is an EDID emulator for DVI-D signals. The unit can capture an EDID setting in non-volatile memory from the output allowing convenient and reliable connection to the source.

Max. Data Rate — 3.3Gbps per graphic channel.
Input/Output — Passes analog signals on the DVI–I connector without processing.
Control — Capture button.

INPUT
1 DVI dual link, DVI 1.0, 1.2Vpp on a DVI Molex 24–pin female connector
DDC signal 5Vpp (TTL)
OUTPUT
1 DVI dual link, DVI 1.0, 1.2Vpp on a DVI Molex 24–pin female connector
DDC signal 5Vpp (TTL)
BANDWIDTH
3.3Gbps per graphic channel
CONTROLS
Capture EDID button
POWER CONSUMPTION
5V DC, 20mA
INCLUDED ACCESSORIES
Power supply
PRODUCT DIMENSION
6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.1kg (0.2lbs) approx.
