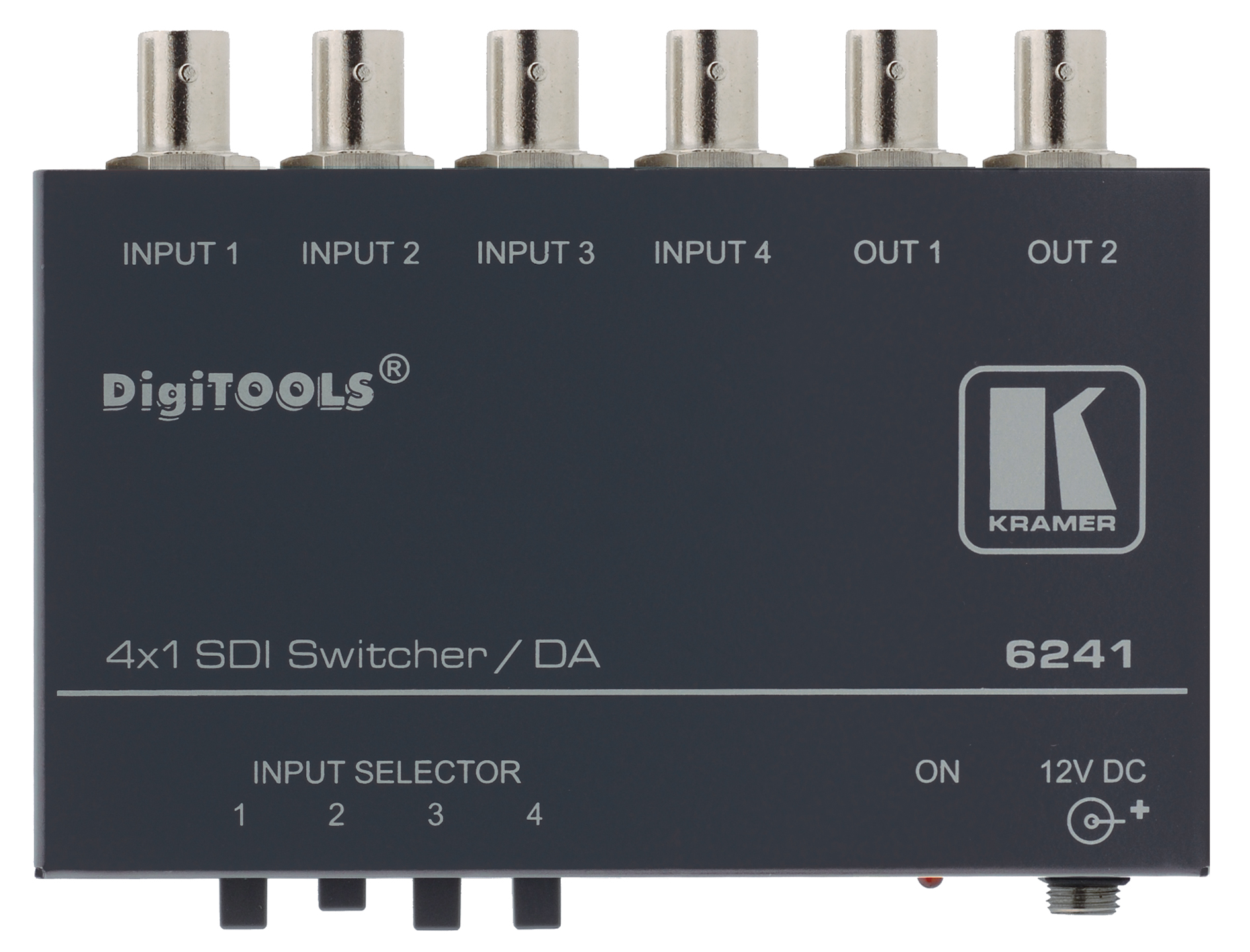

Switcher, Kramer 6241, 4->1:2 SDI

Description

Features
Multi-Standard - Up to 270 Mbps
Reclocking & Equalization
Resolution - 8 & 10-bit
Size - DigiTOOLS®

INPUT: 4 SMPTE - 259M serial video, 75? on BNC connectors.
OUTPUT: 2 reclocked SMPTE-259M outputs, 75? on BNC connectors.
RESOLUTION: 10-bit or 8-bit, automatic according to input resolution.
STANDARDS: 4fsc PAL, 4fsc NTSC, 4:2:2 (525/625), and 360Mbps widescreen (525/625).
EQUALIZATION: Automatic for up to 300m for 270Mbps using Belden 8281 cable.
RECLOCKING: Automatic, according to input standard.
CONTROLS: 4 front panel switches.
DISPLAY: Power ON LED.
POWER CONSUMPTION: 12V DC, 250mA.
DIMENSIONS: 12xm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98") W, D, H.
WEIGHT: 0.3kg (0.67lbs) approx.
