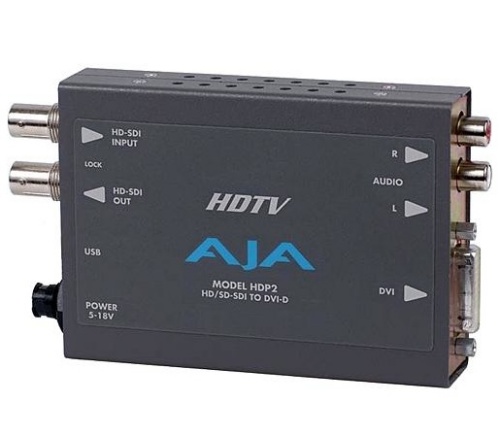

Converter, SDI -> DVI, AJA HPD2

Description

HD-SDI/SDI to DVI-D and Audio Converter

The HDP2 is a miniature HD-SDI/SDI to DVI-D converter for digital display devices, such as LCD, DLP, and Plasma monitors or projectors. Using a very high quality scaling engine and de-interlacer, the HDP2 will automatically size 4:3 or 16:9 inputs to many DVI-D monitors. For appropriate monitor configurations, scaling is automatically 1 to 1-for example, displaying 1920x1080 video on a WUXGA (1920x1200) monitor. The HDP2 will also automatically adapt the input frame rate for monitor compatibility. In addition, the HDP2 provides 2-channel audio monitoring and a looping output of the SDI input.

The HDP2 is designed for general monitoring, perfect for use in applications such as: General post-production reference monitoring, Client monitoring, Presentation, Projection, Corporate displays, Kiosk applications...and much more.

The HDP2 also supports HDMI v1.3a Deep Color (with a DVI to HDMI cable). In the HDMI mode, Deep Color is supported at 30 bits per pixel with 8-channel audio. USB connectivity allows for easy PC/Mac setup and field upgrades.

Features

HD-SDI/SDI to DVI-D
HDMI 1.3a support (via DVI-D connector), including: - Deep Color 30-bit video (24-bit also supported) - 2 or 8 channels of embedded audio
Automatically adapts to popular LCD/ DLP/Plasma monitors (and projectors) up to 1920x1200 and 1080p
High quality scaling engine for proper display of 4:3 or 16:9 content-even better quality than original HDP
1 to 1 scaling for appropriate monitor configurations
2-channel RCA analog audio output (user-assignable channels)
HD-SDI/SDI looping output
Setup via PC/Mac using USB port and supplied USB cable (USB configuration software application supplied on CD)

Inputs
525i, 625i, 720p 50/59.94/60,
1080i 50/59.94/60,
1080p 23.98/24/25/29.9/30,
1080psF 23.98/24/25,
YCbCr 10-bit
Video Inputs
HD, and SD-SDI (auto-selected),
SMPTE-259/274/292/296,
BNC connector
Video Outputs
DVI v1.0 / HDMI v1.3a,
4:2:2 YCbCr,
4:4:4 YCbCr/RGB 24/30-bit,
DVI-D standard female connector
Audio Outputs
RCA-style analog outputs at -10dBV (nominal),
2 channels embedded audio (HDMI mode only),
24 bit, 2 or 8 channels,
User assignable channels
Power
+5 to 18V DC, 6.5 Watts, Power Supply Required (included with purchase)
Size
5.8" x 3.1" x 1 (147mm x 79mm x 25mm)
