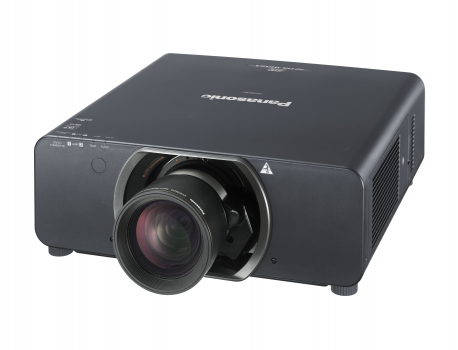

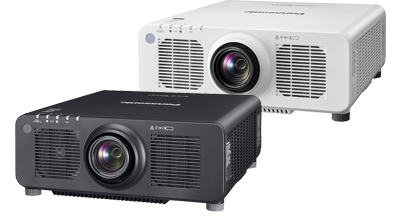

Projector, Panasonic PT-RZ120K 12K Ansi Lm

Description

The 12,000 lm*1 PT-RZ120 is a first among 1-Chip DLP™ projectors. Further refinements to our high-quality imaging technology and filterless cooling system result in uncommonly high brightness from a compact body. Expect vibrant, high-contrast pictures and consistent color uniformity across multiple screens courtesy 1-Chip DLP™ technology and dual solid-state laser light engines. Hermetically sealed optics contribute to 20,000 hours*2 maintenance-free projection, enhancing installation flexibility in elevated positions such as museums, auditoriums, university halls, and even larger, brighter environments.

Projector type 1-Chip DLP™ projector
DLP™ chip
Panel size 17.0 mm (0.67 in) diagonal (16:10 aspect ratio)
Display system DLP™ chip x 1, DLP projection system
Number of pixels 2,304,000 (1920 x 1200) x 1
Light source Laser Diode
Light output 12,000 lm*1 / 12,600 lm (Center)*2
Time until light output declines to 50 %*3 20,000 hours (NORMAL)/24,000 hours (ECO)
Resolution 1920 x 1200 pixels
Contrast*1 10,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)
Screen size (diagonal) 1.27–15.24 m (50–600 in), 1.27–5.08 m (50–200 in) with ET-DLE055, 2.54–8.89 m (100–350 in) with ET-DLE035, 16:10 aspect ratio
Center-to-corner uniformity*1 90 %
Lens PT-RZ120: Powered zoom (throw ratio 1.7–2.4:1), powered focus F 1.7–1.9, f 25.6–35.7 mm
PT-RZ120L: Optional powered zoom/focus lenses
Lens shift*4
Vertical
(from center of screen) +50 %, -16 % (+40%, -16% with ET-DLE060) (powered)
Horizontal
(from center of screen) +30 %, -10 % (+19%, -10% with ET-DLE060 / +28 %, -10 % with ET-DLE085/ET-DLE105 ) (powered)
Keystone correction range Vertical: ±40° (±16° with ET-DLE060, ±22° with ET-DLE105/ET-DLE085/ET-DLE055, +5° with ET-DLE035),
Horizontal: ±15° (±10° with ET-DLE060) (cannot be operated with ET-DLE035)
Keystone correction range with optional
ET-UK20 Upgrade Kit Vertical: ±45° (±16° with ET-DLE060, ±40° with ET-DLE150/ET-DLE250/supplied lens, ±22° with ET-DLE105/ET-DLE085/ET-DLE055),
Horizontal: ±40° (±10° with ET-DLE060, ±15° with ET-DLE105/ET-DLE085/ET-DLE055)
When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding total of 55°.
Installation Horizontal/vertical, free 360-degree installation
Terminals
SDI IN BNC x 1: 3G/HD/SD-SDI input
HDMI IN HDMI 19-pin x 1 (Compatible with HDCP 2.2, Deep Color, 4K signal input)
DVI-D IN DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
RGB 1 IN RGB x 1 (BNC x 5): RGB/YPBPR/YCBCR
RGB 2 IN D-sub HD 15-pin (female) x 1: RGB/YPBPR/YCBCR
SERIAL/MULTI-PROJECTOR SYNC IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
SERIAL/MULTI-PROJECTOR SYNC OUT D-sub 9-pin (male) x 1 for link control
REMOTE 1 IN M3 x 1 for wired remote control
REMOTE 1 OUT M3 x 1 for link control (for wired remote control)
REMOTE 2 IN D-sub 9-pin (female) x 1 for external control (parallel)
LAN RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net)
DIGITAL LINK/LAN RJ-45 x 1 for network and DIGITAL LINK connection (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.2, Deep Color, 4K signal input)
Power supply AC 100–240 V, 50/60 Hz
Power consumption 1,100 W
Cabinet materials Molded plastic
Operation noise*1 44 dB (Normal)/41 dB (Quiet1)/38 dB (Quiet2)
Dimensions (W x H x D) PT-RZ120: 498 x 200*5 x 581 mm (19 19/32? x 7 7/8? *5 x 22 7/8? ) (with supplied lens)
PT-RZ120L: 498 x 200*5 x 538 mm (19 19/32? x 7 7/8? *5 x 21 3/16? ) (without lens)
Weight*6 PT-RZ120: Approximately 23.6 kg (51.9 lbs) (with supplied lens)
PT-RZ120L: Approximately 22.8 kg (50.2 lbs) (without lens)
