Extender VGA-Cat6, Kramer, KIT

Description

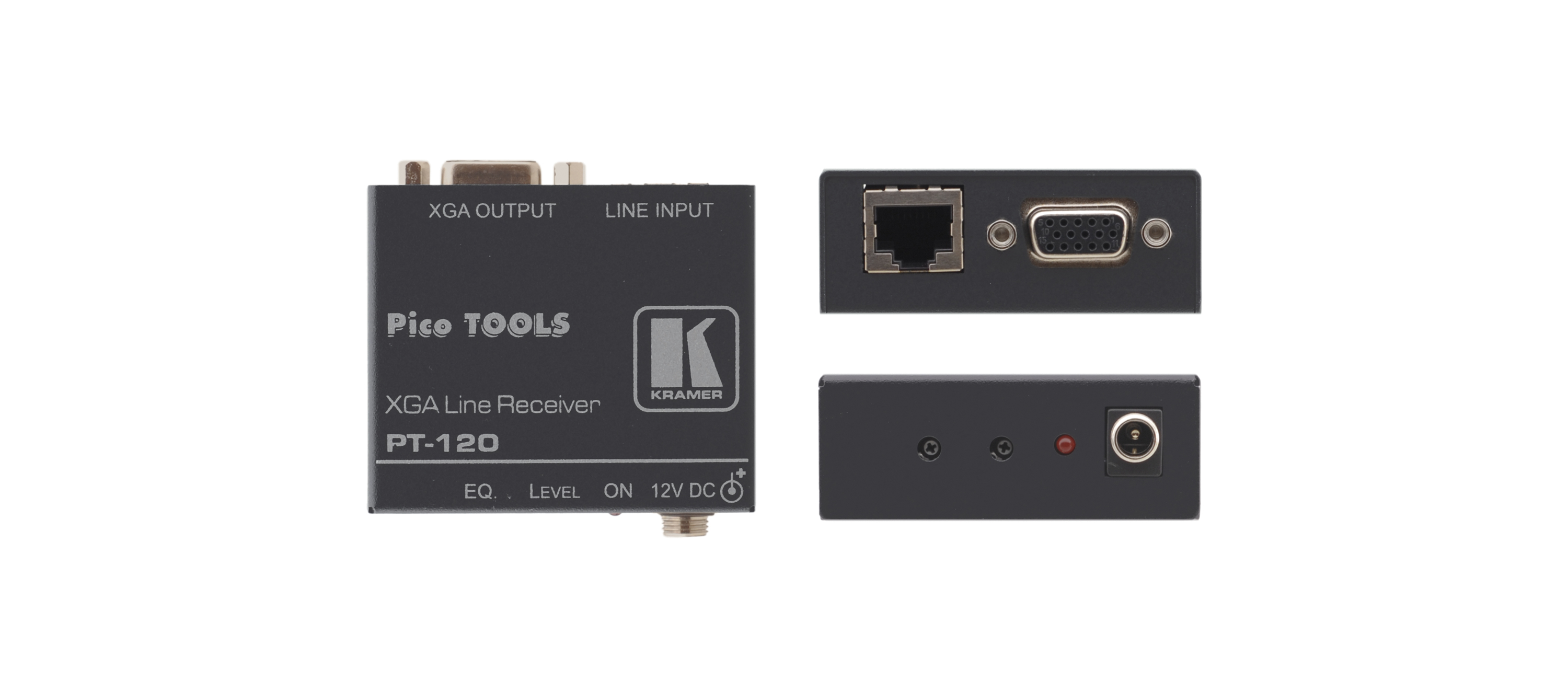

PT-120xl
QUICK FACTS

Range Up to 300m (980ft), Level & EQ Controls
Size - Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter.

INPUT: 1 RJ-45 connector.
OUTPUT: 1 VGA/UXGA on a 15-pin HD connector.
MAX. OUTPUT LEVEL: 1.3Vpp.
RESOLUTION: Up to WUXGA, 1080p.
RANGE: Up to 300m (980ft).
CONTROLS: Level: 0.7v to 1.3v, 300m; EQ: 300m @120MHz.
COUPLING: DC.
POWER CONSUMPTION: 12V DC, 350mA max.
OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F).
HUMIDITY: 10% to 90%, RHL non-condensing.
DIMENSIONS: 6cm x 6.5cm x 2.5cm (2.36" x 2.56" x 1") W, D, H.
WEIGHT: 0.14kg (0.31lbs) approx.
ACCESSORIES: Power supply.

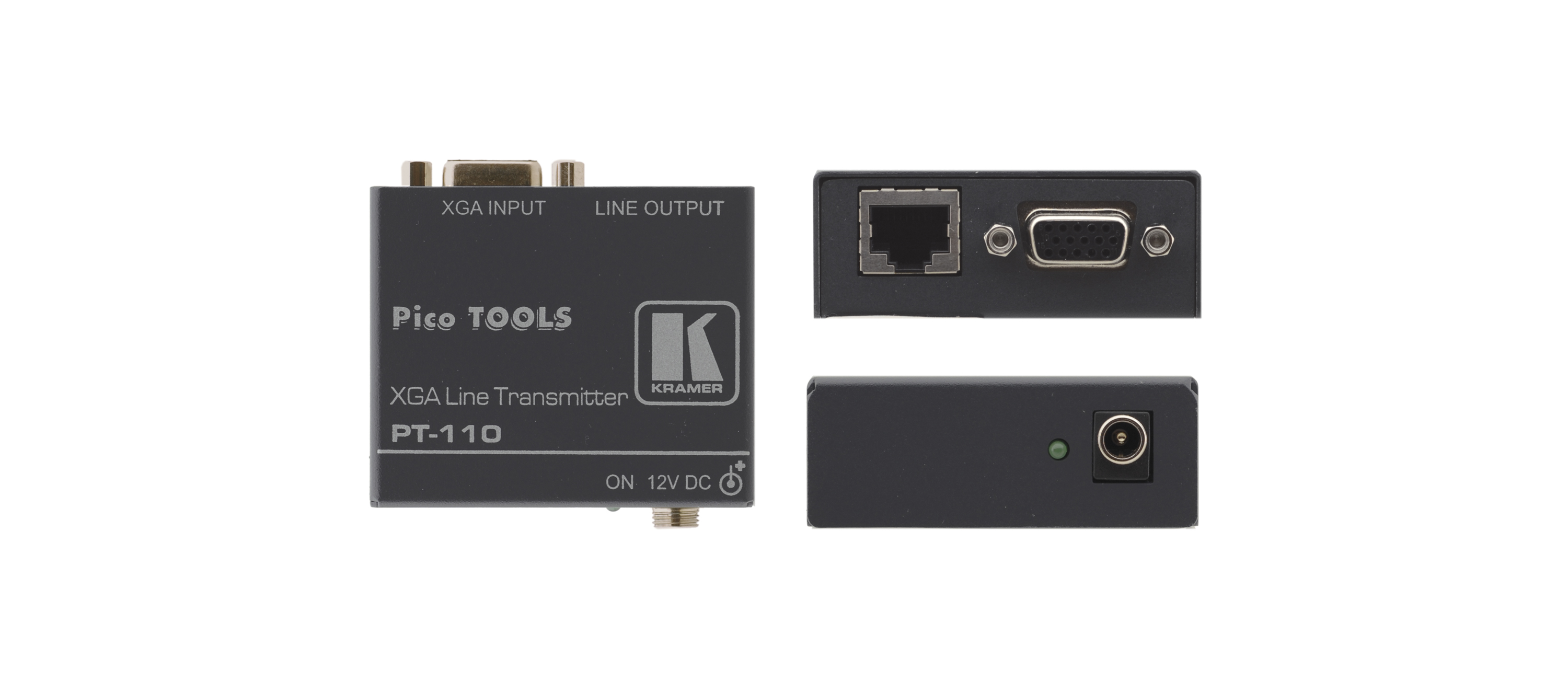

PT-110xl
QUICK FACTS

Max Resolution - WUXGA & 1080p
Extended Range - Up to 250m (820ft)
EDID Capture
Size - Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter.

INPUT: 1 VGA/UXGA on a 15-pin HD connector.
OUTPUT: 1 twisted pair on an RJ-45 connector.
RESOLUTION: Up to WUXGA, 1080p.
RANGE: Up to 250m (820ft).
COUPLING: AC.
POWER CONSUMPTION: 12V DC, 285mA.
OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F).
HUMIDITY: 10% to 90%, RHL non-condensing.
DIMENSIONS: 6cm x 6.5cm x 2.5cm (2.36" x 2.56" x 1") W, D, H.
WEIGHT: 0.14kg (0.31lbs) approx.
INCLUDED ACCESSORIES: Power supply.
OPTIONS: RK-4PT 19" rack adapter.
