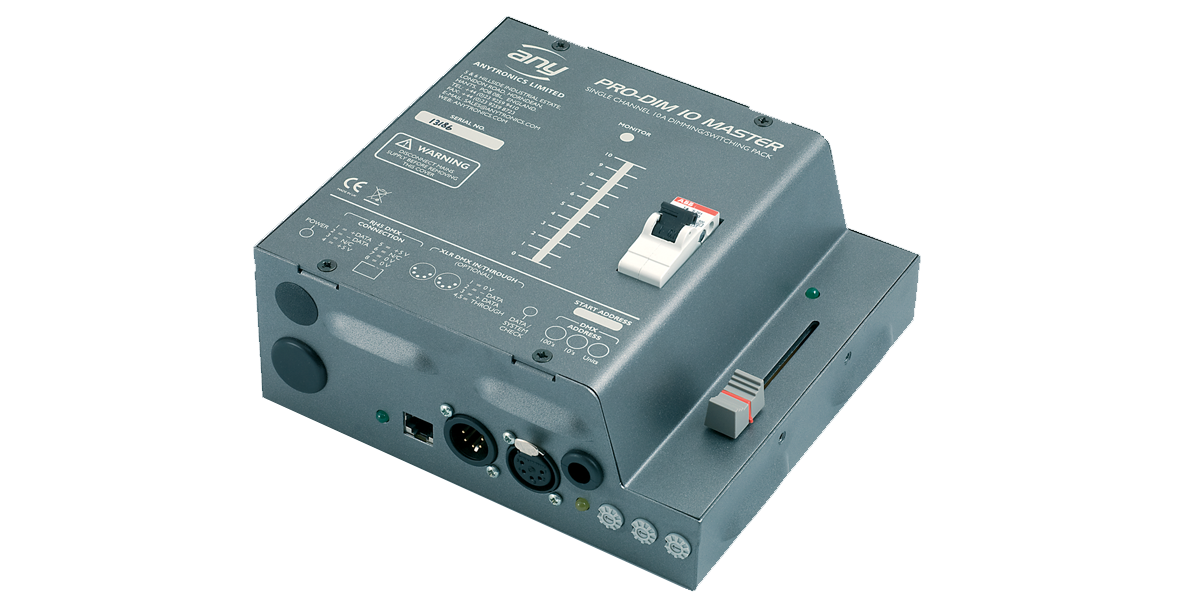

Dimmer 1ch, Anytronics, 2 kw, 10 A schuko in, 2 schuko out, DMX5

Description

In: 200-230V 50/60Hz Schucko
Out: 230V dim, 2 x Schuko
Load: max 2300W



• C10 circuit breaker
overcurrent protection
• +10 V reference voltage output for
remote potentiometer connection
• Internal 0-25% preheat control
• Setting for use with electronic ballasts
• Recommended minimum load 100 W
• Selectable 1 second fade
rate for soft start operation
with large incandescents
• Suitable for wall mounting, pole
mounting or free standing use
• Optional emergency lighting terminal
• Push button outstations available
• Optional DMX input on XLR and RJ45
with thumbwheel bcd address setting
and selectable termination resistor
