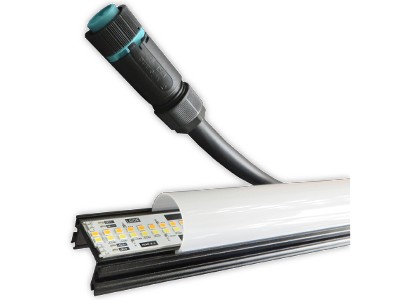

Ramp, LDDE Spectra MasterD, WW+CW, 1,2m

Description

technical specification
Voltage input range 200...240 VAC 50/60 Hz
Power consumption max. 65W
5-pin Power/Data multicore connector 1
Light Source/Color Mixing System WW,CW 402 LED´s
Lumen ~6700 lm
Color Temperature 2700-6000K
Remote + BCD Rotary Switch for Addressing and Settings 1
Control/Wiring USITT DMX512/1990v
Control Channels 1/2/3/4/5
8/16-bit Resolution 1
Modulation PWM or NON PWM
High Resolution Dimmer from 0–100% 1
Suitable for HDTV „flicker-free“ 1
up to 25 Hz Strobe frequency 1
Convection Cooling for silent operation 1
Aluminium extrusion profile 1
Class IP20
Weight / Dimension ~2,2kg / L 1200 x H 60,5 x W 34 mm
Conformity CE, EN 61000-3-2, EN 61000-3-3, EN 55015, N 60529
