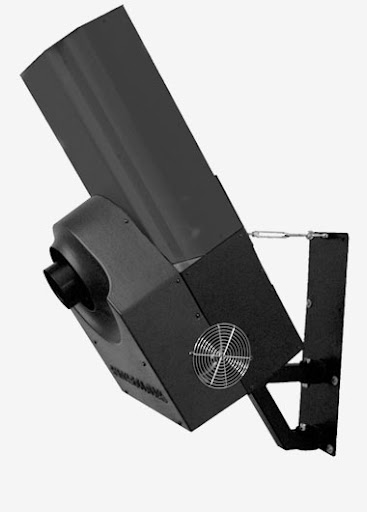

Fog Generator, Smokecloak IPX25

Description

The IPX Range combines a unique rapid dispersal system with a large vapour generating capacity The Smokecloak IPX25 is therefore ideal to provide protection in large volume areas such as warehouses, manufacturing facilities and utility premises.

FEATURES
1600M3 in 60 Seconds
800M3 in 30 Seconds
Attack resistant construction
Can be integrated with other Smokecloak Products
Flexible and adjustable mounting system.
Long hang time dry vapour production
Microprocessor controlled electronics
Rapid vapour dispersal system
Uses Smokecloak FL600 fluid

Specifications
dimensions: 1230 x 475 x 572 mm
weight (assembled): 32,5 kg
weight (installed): 67,1 kg
colour: black
fluid: 2 x 1 liter for ± 4000 m³ or 1 x 9,5 liter for ± 22325 m³
power supply: 200 - 250 Volt
consumption (heating mode): 2,5 Kw / 230 Volt
consumption (standby): 128 Watt
power saving mode: -
reaction time: 0,1 seconds
fog production: 800 m³ in 30s / 1600 m³ in 60s
timer interval: adjustable in 2 positions 1 - 25 minutes
warm-up time: 10 minutes
Cloacksensor: no
Interchangeable nozzles: no
self-purification after fog production: no
USB connection: no
Built in battery backup: 2 x 12 Volt - 2,2 Ah
