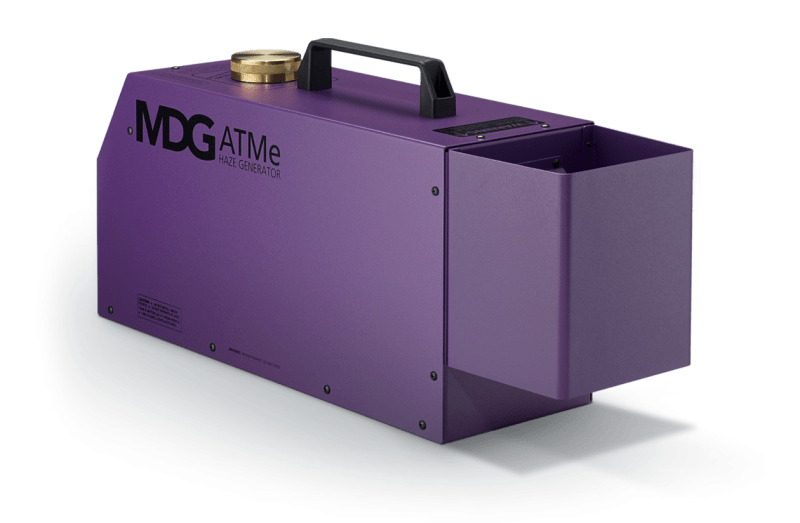

Fog Generator, MDG ATMe, (Purple)

Description

Features

Lowest fluid consumption on the market

At 1.38 bar (20 psi) ATMe uses only 55 ml (1.86 oz) of fluid per hour to give a total running time of 46 hours from its 2.5 L (0.66 US gallon) reservoir.
Longest hanging time

Our MDG Neutral fluid is specially created for the longest hanging time.
Variable haze output

0-100% haze output control from your DMX / RDM device. 100% duty cycle.

APS™ (Automatic Purging System)

This system purges the heating module after the first heating cycle and after every emission of haze preventing residual build up and clogging.
Numerous control options

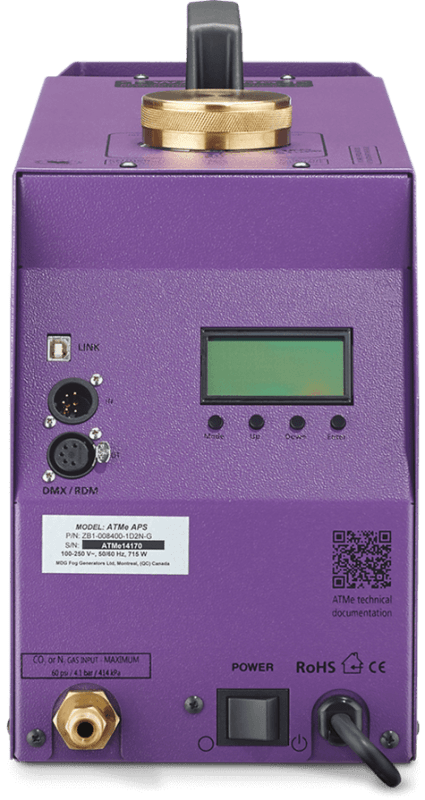

4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.
Extremely quiet operation

Noise emission (at 1m/3.3ft): 45.4 dB in standard mode. The theater mode reduces the fan speed depending on haze output level.


Specifications
Fluid consumption

55 ml (1.86 oz) per hour at 1.38 bar (20 psi)
110 ml (3.3 oz) per hour at 2.76 bar (40 psi)
CO2 consumption

0.18 kg (0.4 lb) per hour at 1.38 bar (20 psi)
0.36 kg (0.8 lb) per hour at 2.76 bar (40 psi)
Reservoir capacity

2.5 L (0.66 US gallon)
APS™ (Automatic Purging System)

Standard
Haze colour

Pure white
Particle size

0.5 - 0.7 micron
Total running time

46 hours at 1.38 bar (20 psi) with a full tank
23 hours at 2.76 bar (40 psi) with a full tank
Warm-up time

8 minutes (maximum)
Fluid type

MDG Neutral
Operating voltage

100 - 250 VAC, 50/60 Hz single phase
Power consumption

715 W
Noise emission

45.4 dB (A) at 1 m (3.3 ft)
Dimensions
Length

68.5 cm (27”)
Width

18 cm (7”)
Height

30 cm (12”)
Weight

16.8 kg (37 lb)
Shipping weight

30.5 kg (67 lb) with flight case
Approval

CE certified, CSA and UL approved
