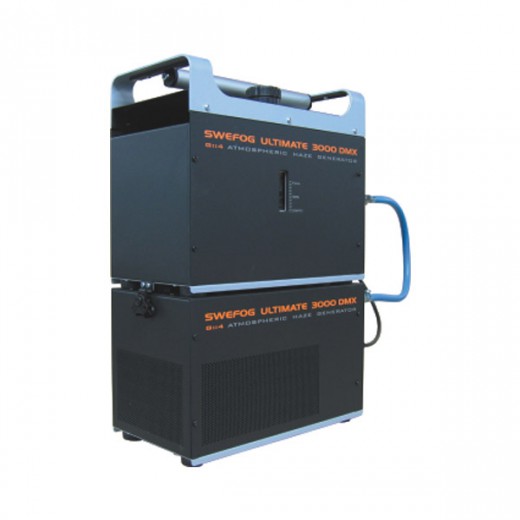

Fog Generator, Cracker, Swefog 3000, DMX5

Description

Our flagship series. Setting the industry standard since 1998. Current series is the 4th generation Ultimate.
Instant ON, no warm-up time. Continuous operation. Very high output, extremely low fluid consumption;
0,05 ltr/hour at continuous operation. A 5L canister lasts appr. 80 hrs. Full DMX control with auto store of
last address setting used. New air filter system prevents housing from dust. Use Swefog Ultimate oil-based fluids.

Continuous operation high output 'cracker' haze generator, with separate compressor & haze units.
Included: to connect between compressor and haze units. 230V mains cable NOT included (IEC inlet on machine)
Included: 1x U2000 compressor unit, 1x U3000 haze unit 1x 0,5m + 1x 10m AC connection cable
between compressor & haze units, 1x 0,5m & 1x 10m air hose, 1x user manual (ENG)
Included: 1 year limited warranty (included) + 1 year additional limited warranty (online registration required).
NOT included: 230V mains cable (IEC inlet on machine)
Hazer/Cracker

Separate or as one, compact unit? The Ultimate 3000 DMX can do it all. Real stuff, good haze. Made in Sweden.

Zealous attention to detail is what sets Swefog products apart from the mainstream. Professional-grade design and engineering means a comittment to a higher standard. In place of flashy doodads and gimmicks, Swefog hazers are endowed with innovation and technology that uplifts everyday use.

Again, Swefog sets a reference standard with the Ultimate 3000 DMX, the 4th generation of atmospheric hazers.

This machine is the perfect combination of the unbeatable haze from an Ultimate series hazer and whisper-quiet operation. Ultimate 3000 DMX has the same high output capacity as Ultimate 2000 DMX, but compressor and haze units are able to work separately.

With the use of an extension hose up to 25m (82 ft), the compressor unit can be hidden away for silent operation. The haze unit, which can be placed directly on a theatre stage, contains Swefog’s Whisper technology; the unit is designed vibration-free, and with lowest possible fan noise.

No other haze - water, glycerine or glycol-based - compares to the haze of Ultimate 3000 DMX.

The haze is virtually invisible until it is illuminated, and it enhances the beams from projected lights without loss of illumination power.

Unbeatable reliability, performance and value for money, the 4th generation Ultimate hazers represent a true industry standard that other hazers compare to.

Proudly handmade in Sweden.

HIGHLIGHTS:

Instant ON, NO warm-up time, NO heat, NO glycols, NO water, NO spirits.

Fully integratedDMXcontrol, uses one channel only.

Manual or DMX control mode. Illuminated LED display, auto-store of DMXchannel at power-off, perfect for touring use.

Extremely low fluid consumption, 0,05 ltr per hour at continuous operation at full output. A 5L fluid canister will last for approx. 80 (!) hours.

An advanced internal 5 micron filter system ensures the safest, cleanest atmospheric haze.

Features a new air filter system; in & outlets are protected with an easily replaceable filter, keeping internal parts clean.

Comes fully loaded with two sets of air hoses & electric cables, 0,5m & 10m. Optional 16m & 25m air hoses available from your Swefog dealer!

A new, ergonomic AluGrip handle and a perfectly balanced design make Ultimate 3000 fully portable.

Specifications:

Type: "Cracker" haze generator, pneumatic.
Fluid type: Mineral-oil based
Fluid consumption: 0.05 ltr at continuous. operation
Reservoir capacity: 2.5 ltr
Operation: Continuous
Nozzle type: Swefog V-TEC 3-way vapourizing nozzles
Power: 240V -50Hz.
DMX channels req: 1
Max length of air hose: 25m.
Power consumption Haze unit: 40 Watts
Power consumption Haze unit: 540 Watts
Dimensions compressor: LxWxH:417 x 203 x 293mm
Weight: 14,7 kgs
Dimensions haze unit: LxWxH: 410 x 203 x 335mm
Weight: 11,9 kgs
