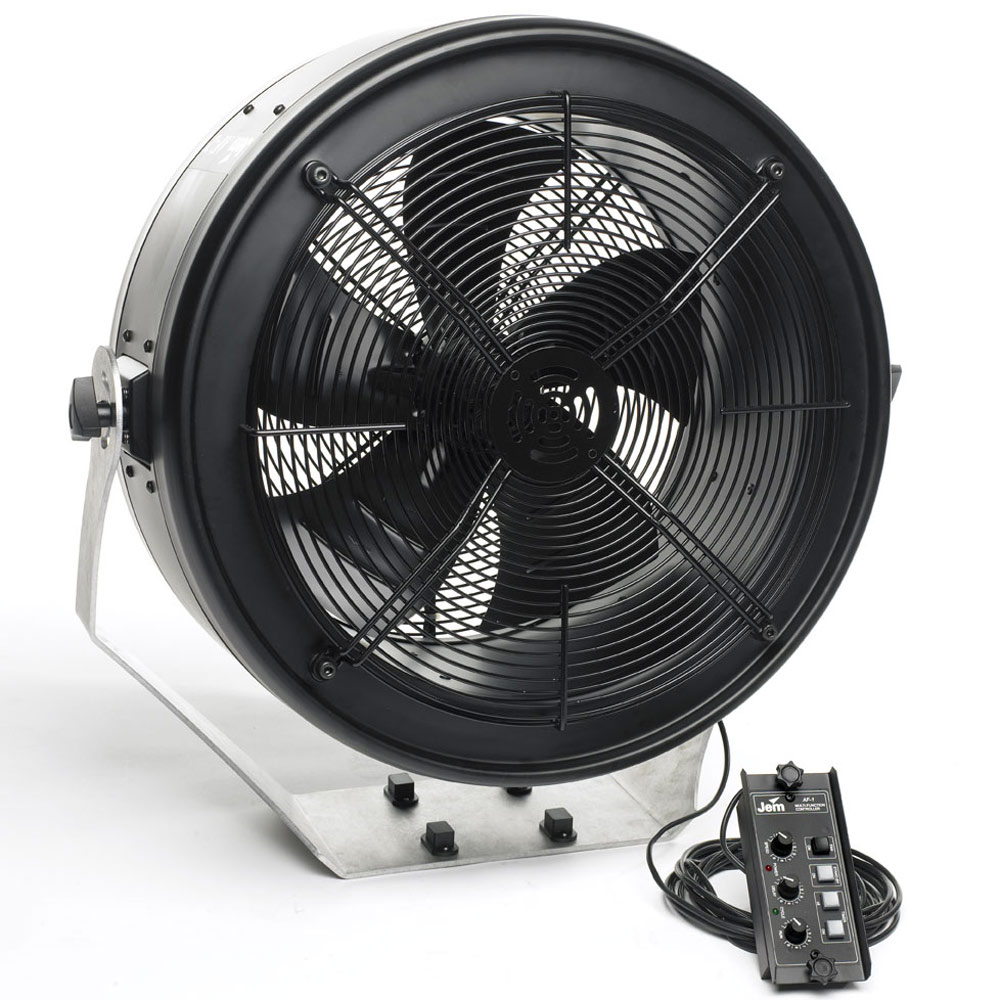

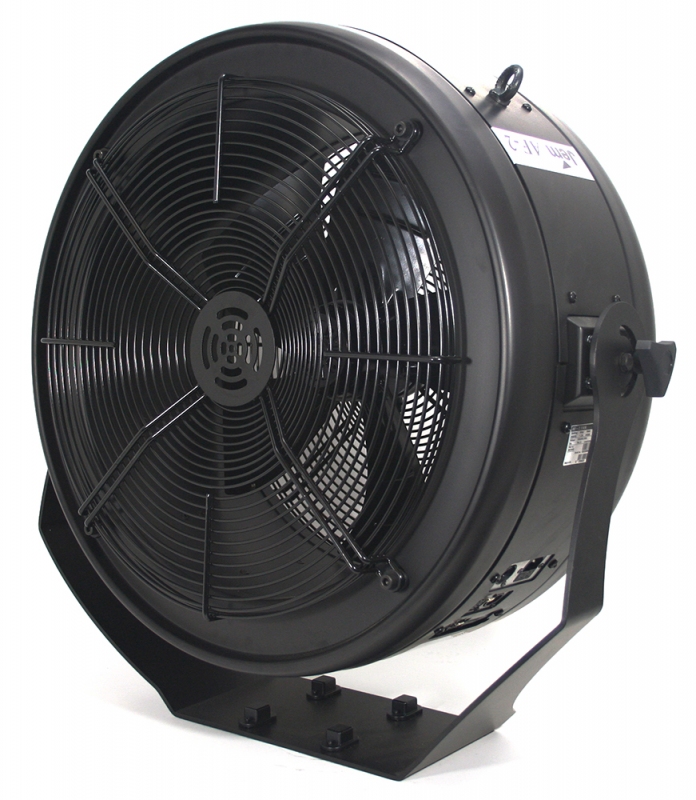

Fan, Martin JEM AF-2, DMX35

JEM AF-2.jpg
JEM AF-2.jpg

Optional «add ons» to this items:

Remote, Martin AF1
Start Price
65 EUR

Description

Airflow: 6500 m³/hr
AF-2 fan
The AF-2 is a high-output fully DMX controllable fan. It has been designed with theme parks, stage applications and theatres in mind.

Fan speed 0 - 1380 rpm
Floor standing or truss mounting
Optional "Touring Frame"
Onboard DMX, 3 & 5 pin
Multifunctional remote control

Physical
Width: 682 mm (26.9 in.)
Height: 707 mm (27.8 in.)
Depth: 318 mm (12.5 in.)
Dry weight: 17 kg (37.5 lbs.)

Performance
Maximum airflow: 6500 m3 per hour
Fan speed: 0-1380 rpm

Control and Programming
Control options: Remote control (supplied), DMX
Remote control features: Instant or timer-controlled output, 0-100% adjustable output level
Delay 2-144 seconds, run time 2-144 seconds
DMX channels: 1
Protocol: USITT DMX512/1990

Construction
Housing: Steel & aluminum

Installation
Orientation: Any

Connections
Remote control: 3-pin locking XLR
DMX data: 3-pin and 5-pin XLR sockets
Power connection: 3-pin IEC

Electrical
AC power (EU models): 220-240 V nominal, 50 Hz
AC power (US models): 110-120 V nominal, 60 Hz
Main fuse (220-240 V power): 5 AT (slow blow)
Main fuse (110-120 V power): 6.3 AT (slow blow)
