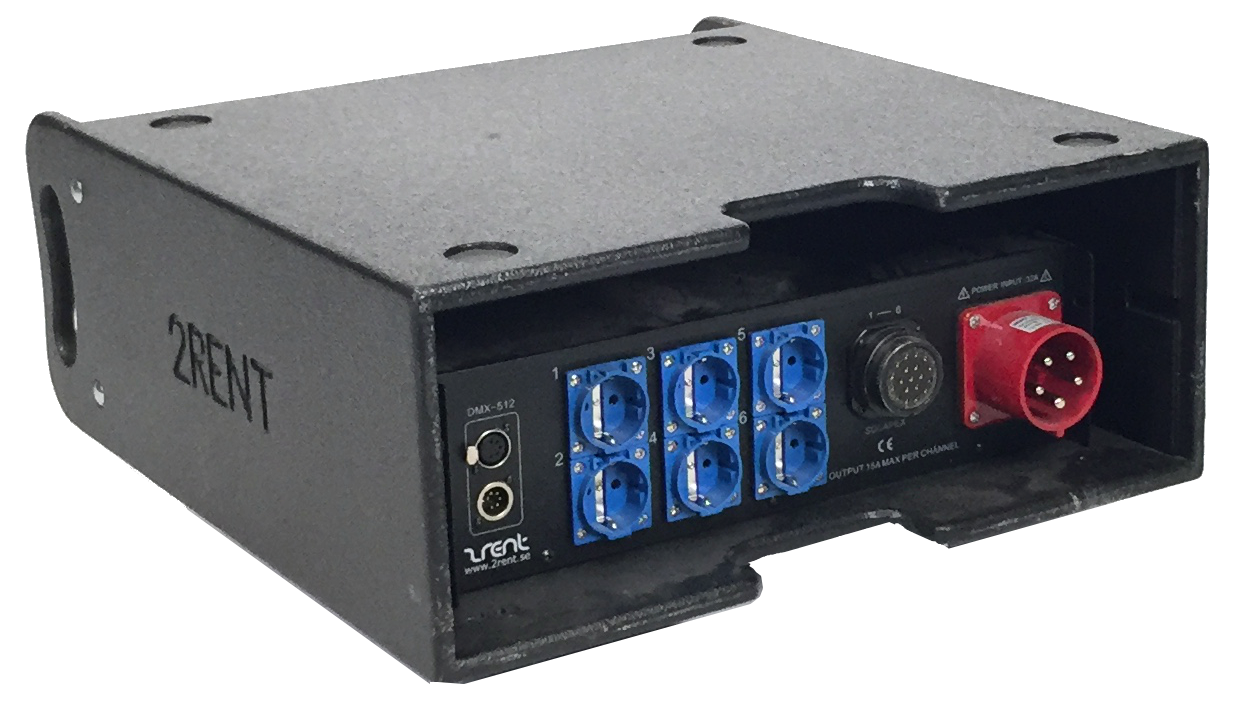

Dimmer 6 ch, LS, 3 kw, 32A in, Soca+Schuko out, DMX5

Description

Product Features :

Fully digital dimming, 6×3kW dimming output
DMX512 input, opto-isolated protection
LCD display
250µs professional filter
10-level filament preheat ing
MCB overload and short-circuit protection
3-phase indicator and communication status LEDs
Intelligent control of fans and over-heat warning
4 dimmer laws

Technique Parmeters:
Power supply:3NPE 400V 50HZ TN-S system
Power supply voltage range:230V±10%
Rated supply current:60A per phase at 230V
Control signal protocol:DMX-512/1990 USITT
Standards Compliance:
EMC:EN55015
Safety:EN60204-1:2006 EN60950-1:2006
Mechanical Data:
Dimensions(mm):483(W)×132(H)×460(D)
Net weight:17Kg
