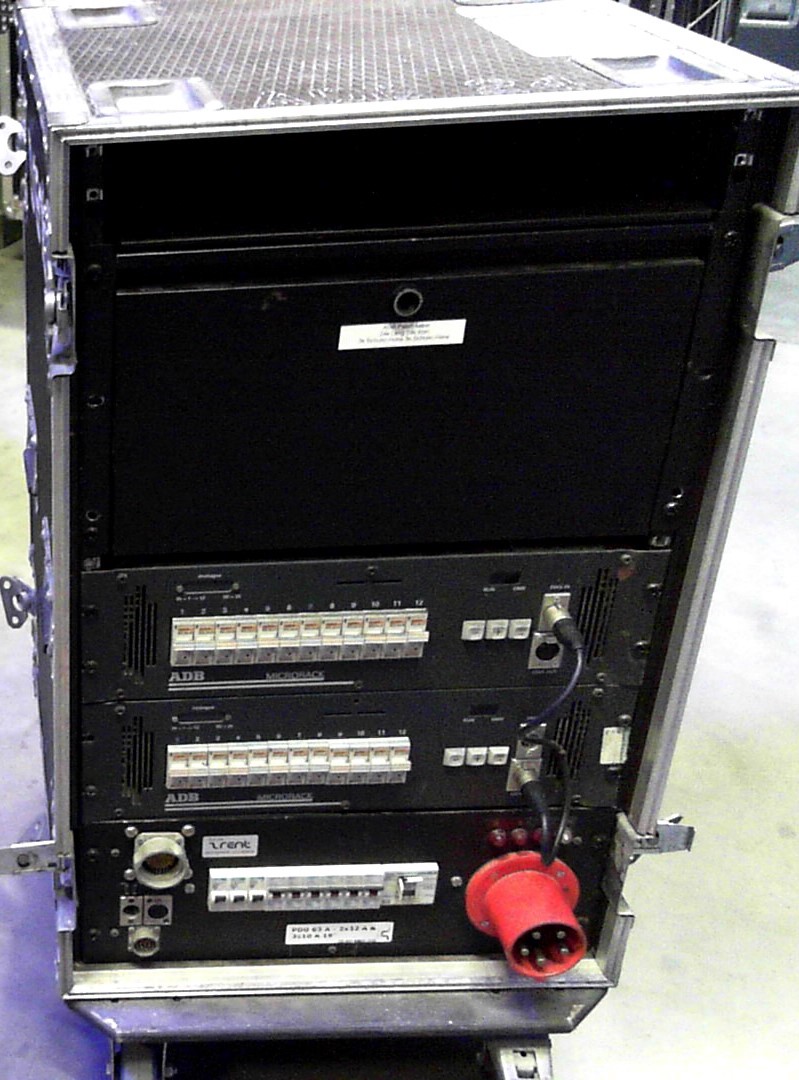

Dimmer 24 ch ADB 2.4 kw patch, 63 A in, Soca ut

Description

In: 63A CEE
Ut: 8 x Soca
Med Patch

Fas följd:
1 - L1
2 - L2
3 - L3
4 - L1
5 - L2
6 - L3
7 - L1
8 - L2
9 - L3
10 - L1
11 - L2
12 - L3
13 - L1
14 - L2
15 - L3
16 - L1
17 - L2
18 - L3
19 - L1
20 - L2
21 - L3
22 - L1
23 - L2
24 - L3

12 x 2.3 kW high density unit designed for insertion in
touring racks and for fixed installations in MEMORACK 180
cabinets or standard 19" racks.
Combining high quality with low cost and above average
performance, for general purpose applications in stage and
architectural lighting whenever space, cost and reliability
are the prime considerations. This equipment is available
with all standard Europeen outlets.
Main Features
• 3-key keypad, 4-character LED display and user-friendly
menu for easy access to all dimmer functions
• local test of a dimmer (steady or chaser)
• 10 dimmer laws selectable per dimmer
• fade smoothing (4000-step resolution)
• last lighting cue maintained in case of DMX signal interruption
• permanent storage of all programmed data
• protection circuitry against accidental 400 V wiring
• local status reporting: 400 V - overtemperature - fan
failure - processor check - presence of DMX signal -
DMX and analogue control levels
• first dimmer address selection
• storage of a lighting cue
• low noise fans for effective cooling with automatic fan-stop
• overtemperature protection through gradual dimmer
fade out
Technical Specifications
• available with AMP, SOCAPEX or Twin Wieland outlets
• power supply: 230 V / 400 V Star 3NPE (TN-S), 50/60 Hz
• individual protection by MCB / 1P (standard version);
optional 1P+N protection with MCB's or HRC fuses with
"fuse OK" neon indicator and slot for spare fuse
• suitable for continuous duty at 12 x 10 A at 35 °C
(12 x 2.3 kW at 230 V)
• DMX512/1990 input (XLR5) with galvanic isolation and
optional analogue inputs 0/+10 V (DB25-S)
