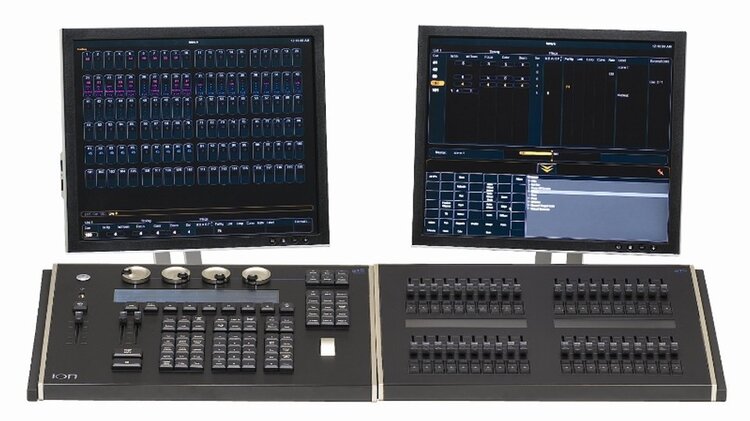

Console, ETC Ion 1000

Description

Software version 2.9.3.12

S P E C I F I C A T I O N S
SYSTEM CAPACITY
1,024 outputs
16,000 Channels (mapped from 1 to 99,999)
10,000 Cues
999 Cue Lists
200 Active Playbacks
999 Submasters
4 x 1000 Palettes (Intensity, Focus, Color, Beam)
1000 Presets (all palette)
1000 Groups
1000 Effects (relative, absolute or step)
99,999 Macros
1000 Snapshots
1000 Curves
1000 Color Paths
Supports two external DVI monitors or one Display Port monitor at 1280x1024 minimum resolution or multi-touch screen control
USB ports for flash drives, pointing devices, keyboards

INTERFACES
2 DMX-512 / RDM Ports
Ethernet (ETCNet2™, Net3™,Artnet and Avab UDP output protocols)
Contact Closure triggers via D-Sub connector
Two DVI connectors support two external DVI displays(1280x1024) with optional touch- or multi-touch screen control
One Display Port connector (Note: only 2 of Ions 3 monitor ports may be used at once)
Seven multipurpose USB ports
Net 3 Radio Focus Remote
MIDI Timecode, MIDI Notes and MIDI Show Control through Gateway
SMPTE Timecode through Gateway
Additional contact closure (12 analog inputs, 12 SPDT contact outputs, RS-232) through Gateway
One eSATA port
OSC Transmit and Receive
UDP Transmit and Receive
