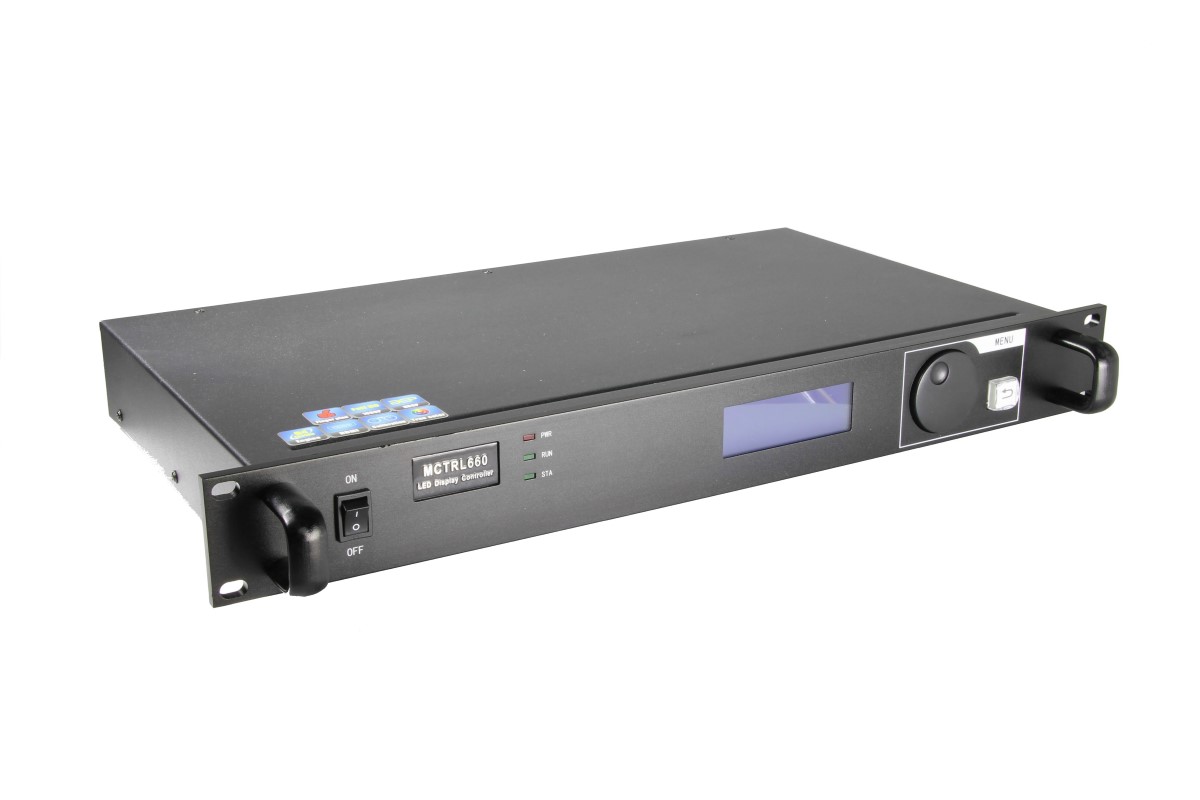

LED Processor, SendingCard NovaStar 660, DVI in

Description

MCTRL660
Product Type :Controller
Input Resolution :1920×1200,2048×1152,2560×960(width and height can be specially defined by customers)
Capacity :2.3 million pixels.
Supply Voltage :AC-100-240V-50/60HZ
Control Method :USB Interface
Video Interface :HDMI/DVI
Audio Interface :HDMI/3.5mm
Viedo Format :RGB,YCrCb4:2:2,YCrCb4:4:4
Output Interface :4 Ethernet ports
Bit Depth Of Video Resource :8/10/12bit
Light Sensor Interface :Don't Support
Certification :CE, ROHS, FCC, UL, EAC

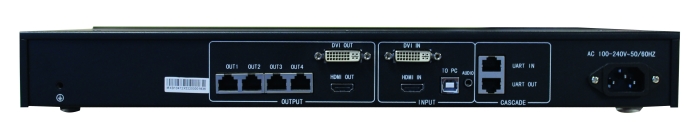

1 × DVI input
1 × HDMI input
4 × Gigabit Ethernet outputs
Supports the new generation of NovaStar calibration technology, which is fast and efficient.
Supports resolutions up to 1920×1200@60Hz and downward compatibility.
Multiple controllers can be cascaded.
Supports 18-bit grayscale processing and display.
Manual screen brightness adjustment, which is fast and convenient.
Quick screen configuration without using a computer.
Adopts an innovative architecture to implement smart screen configuration, allowing a screen to be configured within 30 seconds and greatly shortening the stage preparation time.
Adopts NovaStar G4 engine to realize a perfect display image with no flickering or scanning lines, as well as fine quality and good sense of depth.
Supports a variety of video formats, as described in Figure 2-1.
