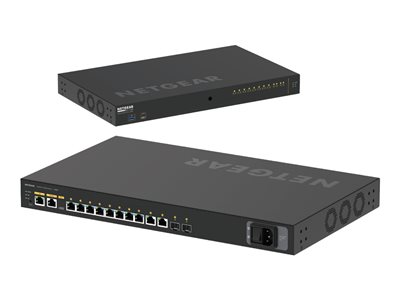

Ethernet Switch, Netgear AV Line M4250-10G2XF-PoE++

Description

The NETGEAR M4250 switch series was developed and engineered for audio / video professionals with dedicated service and support. M4250 has been built from the ground up for the growing AV over IP market. AV codecs generally use 1 Gbps or 10 Gbps per stream and the AV Line of M4250 targets the widespread 1 Gbps codecs. PoE++ and rear-facing ports ensure a clean integration in AV racks. M4250 switch comes pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante, as well as audio / video / control mixed profiles.

Allmänt

Typ av enhet Switch - 12 portar - L3 - Administrerad
Modell Sida till sida luftflöde rackmonterbar 1U
Undertyp 10 Gigabit Ethernet
Portar 10 x 10/100/1000 (8 PoE++) + 2 x 10 Gigabit SFP+
PoE (Power Over Ethernet) PoE++
PoE-budget 720 W
Prestanda Växlingskapacitet: 60 Gbps
Brandväggsgenomströmning (64 bitars paketstorlek): 44.64 Mpps
Latens (1 Gbps): < 2.14 µs
Latens (10 Gbps): < 0.84 µs
Kapacitet VLAN-stöd: 4093
ARP-poster: 4000
Multicast-poster (IPv4): 512
Multicast-poster (IPv6): 128
Jumboramstorlek: upp till 12.000
IGMP multicastgrupper: 2000
MSTP-instanser: 16
PVST instanser: 32
MAC Address Table Size 16K poster
Nätverksprotokoll RIP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, statisk IPv4-routing, statisk IPv6-routing, MLDv2
Protokoll för administration på distans RMON 1, RMON 2, SNMP, RMON 9, Telnet, HTTPS, SSH, CLI, TACACS+, RADIUS
Krypteringsalgoritm SSL 3.0, TLS 1.2
Funktioner VLAN-stöd, skydd mot DoS-attacker, sFlow, stöd för STP (Spanning Tree Protocol), DHCP-snooping, Quality of Service (QoS), DHCP-server, Dynamic ARP Inspection (DAI), DHCP-relä, LACP (Link Aggregation Control Protocol), Remote Switch Port Analyzer (RSPAN), Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), 16 MB paketbuffert, IP-källskydd, Bridge protocol data unit (BPDU), GARP Multicast Registration Protocol (GMRP), Spanning-tree Root Guard (STRG), policybaserad routing, Authentication, Authorization and Accounting (AAA), LLDP-MED, Private VLAN, Protocol Independent Multicast (PIM), Rapid Reconfiguration of Spanning Tree (RSTP), Link Aggregation Group (LAG)
Standarder som följs IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qat, IEEE 802.1Qav, IEEE 802.3bt
Processor X ARM A9: 1.25 GHz
RAM 2 GB
Flash-minne 256 MB
Statusindikatorer PoE, länk/akvititet, hastighet
Expansion/Anslutning

Gränssnitt 10 x 10/100/1000 Base-T RJ-45 8 portar (PoE++)
2 x 10GBase-X SFP+
1 x hantering (Gigabit LAN) RJ-45
1 x konsol RJ-45
1 x USB Type A
1 x konsol (USB) Type C
Strömtillförsel

Nätdel Intern strömförsörjning
Installerat antal 1
Energiförbrukning vid drift 26.3 Watt
Strömkonsumtionsställ med 18 Watt
Diverse

Inkluderade tillbehör Monteringskonsoler, sats med tassar, 2 st. SFP-kortlock
Medföljande kablar Konsolkabel
USB-C till USB-A-kabel
Rackmonteringssats Inkluderat
Standarder som följs CCC, EN 61000-3-3:2013, EN 55024:2010, YD/T993-1998, IEC60950/EN60950, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, GB 4943.1-2011, EN 55032:2012+AC:2013 Class A, CNS 14336-1, IEEE 1588, ICES-003:2016 issue 6 Class A, CISPR 32:2012, EN 61000-3-2:2014 Class A, VCCI-CISPR 32:2016 Class A, AN/NZS 60950.1:2015, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, GB/T9254-2008 Class A, ANSI C63.4:2014
Lokalisering Europa
Dimensioner och vikt

Bredd 44 cm
Djup 25.7 cm
Höjd 4.32 cm
Vikt 3.83 kg
