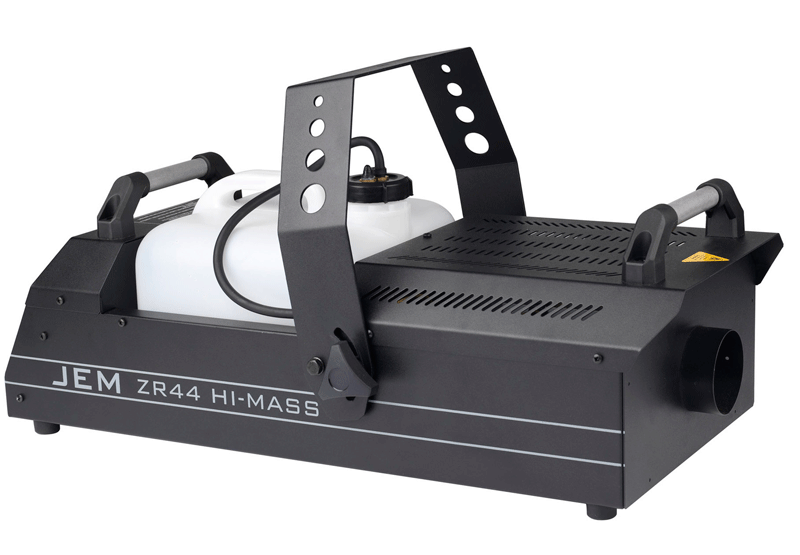

Fog Generator, Jem ZR-44, DMX3

Description

1200 m³/min fog output
Continuous output
1800 W heat exchanger
7.5 min heat-up time
Floor standing or truss mounting
Neutrik PowerCon connector
Indirect Fluid Sensing System
Proprietary Pro Steam Simulation fluid solution
Different fluid options for different applications
Leaves no oil residue on light fixtures
Tough and solid design
3 & 5 pin DMX interface
Prepared for multifunctional digital remote
RDM capable
Soft Start technology

Jem ZR44 Hi-Mass™ Specifications

The Jem ZR44 Hi-Mass™ is a reliable and highly efficient fogger capable of precise fog delivery from subtle to massive. Ideal for a variety of settings from small venues to huge stadiums and arenas, it features advanced technology for top-quality performance, as well as advances in digital functionality such as RDM compatibility.

Features
1200 m³/min fog output
Continuous output
1800 W heat exchanger
7.5 min heat-up time
Floor standing or truss mounting
Neutrik PowerCon connector
Indirect Fluid Sensing System
Proprietary Pro Steam Simulation fluid solution
Different fluid options for different applications
Leaves no oil residue on light fixtures
Tough and solid design
3 & 5 pin DMX interface
Prepared for multifunctional digital remote
RDM capable
Soft Start technology

Physical
Length: 685 mm (27.0 in.)
Length (Inc Optional Drip Tray): 750 mm (29.5 in.)
Width: 345 mm (13.6 in.)
Height: 225 mm (8.9 in.)
Dry weight: 19 kg (41.9 lbs.)

Performance
Max. fog output (approx.): 1200 m3
Max. operating time at full output (approx.)
Operating time: Continuous, automatic level adjustment
Warm-up time (approx.): 7.5 minutes

Control and Programming
Control options: Onboard analogue remote control (Supplied), Multi-Function digital remote control (Optional), DMX (3 and 5 pin), 0-10V analog, RDM capable
Remote control features: Instant or timer-controlled variable output
Delay time 2-144 seconds, run time 2-144 seconds
DMX channels: 1
RDM Capable via DMX socket
Digital link machine to machine (Using optional Digital Multi-Function remote)

Construction
Housing: Steel & aluminum
Heat exchanger: 1800 W, direct thermal protection

Fluid System
Fluid pump: Oscillating piston, high pressure X2
Onboard fluid capacity: 9.5 l
Fluid consumption at peak output: 150 ml per minute
Indirect fluid sensing system for unattended operation

Installation
Orientation: Floor or adjustable mounting bracket

Connections
Remote control: 2 x 3-pin locking XLR
DMX and RDM data in/out: 2 x 3-pin and 2 x 5-pin locking XLR
Power cable entry: Neutrik PowerCon

Electrical
AC power (EU models): 220-240 V nominal, 50 Hz

Main fuse (220-240 V power): 10 A


Typical Power and Current
US model
120 V, 60 Hz: 1750 W, 14.58 A
EU model
230 V, 50 Hz: 1890 W, 8.21 A
Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
50/60Hz operation on either voltage.
