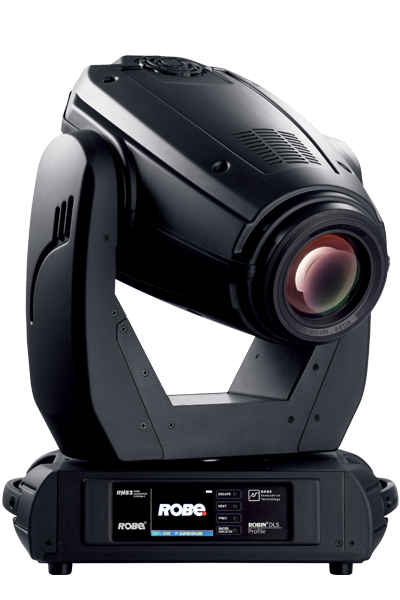

Moving Head, Profile, Robe Robin DLS, LED

Description

This is the latest product in the DL range of luminaires that use the Robe RGBW LED module. The DLS adds a system of 4 fast, smooth, framing shutters within the optical path design of the proven DLX Spot format. There is individual control of each shutter blade position and angle, together with rotation of the complete framing module. As well as providing a sharp precise or soft frame for the projected image, the system produces a new series of effects through pre-programmed shutter blade shape and movement sequences. As with all models in the Robe DL luminaire range, the multiple shadows normally associated with an LED source have been eliminated.

The Robe RGBW LED light source reproduces both rich and pastel colours at output levels normally associated with 1200 W discharge fixtures as well as pure whites at preselected 2700, 3200, 4200, 5600 and 8000 kelvin colour temperatures. The tungsten emulation function allows the fixture to be integrated seamlessly into lighting schemes with existing traditional lanterns.

Details:

Source
Light source: Robe RGBW LED module
LED module Life Expectancy: 20.000 hrs
Optical System
Beam angle: 10° – 45°
RGBW or CMY (8 or 16bit) colour mixing option + variable CTO
Electrical Specification
Supply input: 100–240 V, 50–60 Hz auto-ranging
Power consumption: 550 W max. (Typical 160–215 W - one colour full)

Mechanical Specification
Height: 678 mm (26.7") – head in vertical position
Width: 388 mm (15.3")
Depth: 480 mm (18.9") – head in horizontal position
Weight: 22 kg (48.5 lbs)
Thermal
Maximum ambient temperature: 45 °C (104 °F)
Maximum surface temperature: 90 °C (194 °F)
Rotating Gobos
Outside diameter: 26.9 mm, image diameter: 22.5 mm, thickness: 0.15 mm, max. thickness: 4 mm, high stainless steel or better glass.
Effect wheel
Aluminium Animation wheel
Can be used alone or in combination with rotating gobos
Rotating in both directions, variable speed
Framing shutters system
4 Blades, each with separate movement and rotation control
Smooth blade movements, variable speed
Ultra fast blade movement for creating mid-air effects
Pre-programmed shape and blade sequences
+-45° rotation of the complete Framing system
Control and Programming
User Interface: Colour Touch Screen - ROBE Navigation System 2 (RNS2), battery backup
Protocols: DMX-512, RDM, ArtNet, MA Net, MA Net2
DMX modes (channels): 47, 38, 36

3 user defined programs, each up to 100 steps
Stand-alone operation
Pan/Tilt resolution: 8 or 16bit
Movement control: Tracking and vector
Rotating gobo wheel positioning: 8bit
Gobo indexing & rotation: 8 or 16bit
Virtual colour wheel with pre-programmed 237 colours plus whites (2.700 K, 3.200 K, 4.200 K, 5.600 K and 8.000 K)
Tungsten lamp emulation at whites 2700 K and 3200 K
Variable CTO filter
Colour rainbow effect, variable speed
Framing shutters system: 8 bit
Animation wheel : 8 bit
Iris: 8 or 16bit
Frost: 8 bit
Zoom: 8 or 16bit
Focus: 8 or 16bit
Dimmer: 8 or 16bit
Strobe effect, variable speed (20 flashes per second max.)
Data in/out: Locking 3-pin & 5-pin XLR, RJ45
Power connection: Neutrik PowerCon (cable supplied)
Built-in analyser for easy fault finding
Electromechanical Effects
Rotating Gobo wheel: 7 rotating, indexable, replaceable "SLOT&LOCK" metal gobos + open
Framing shutters: 4 individually positionable blades plus rotation of the complete frame system +-45°
Glass Animation wheel
Iris: Motorized, stepless, pulse effects up to 3 Hz
Prism: 3-facet 11° prism rotating in both directions at different speeds
Frost filter: Separate, variable
Motorized zoom: 10° (gobo position) - 45° (free hole)
Motorized focus
Pan: 540°
Tilt: 280°
Rigging
Mounting points: 2 pairs of ¼-turn locks
2x Omega brackets with ¼-turn quick locks
Pan and Tilt transport locks
