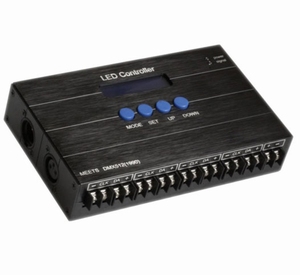

LED ribbon, DMX Decoder w Disp, 4ch, 8A, DMX3

Description

1.Meet DMX512(1990) protocol. Can be used as a DMX512 decoder;
2.33 normal changing patterns and 4 DMX operating modes;
3.256 levels brightness , totally 16.77 million colors, real full color (up to 65536 levels);
4.0-255 changing speed levels for dynamic change;
5.RGB individual dimming function;
6.Automatic parameter memory;
7.XLR3 Male and Female interface.
8.All 37 modes.



Technical parameters
Model Number: SC-WC8
Voltage: 12V-24V DC
Output Current(MAX): 5A/12V DC and 2.5A/24V DC for each channel
Output Power(MAX): 720W(12V/24V)
Output Channels: Dimming up to 12 channels
Control distance: >30m

1.Each "channel unit" has the max. load capacity 180W and the 4 units can be loaded max. 720W. If connected with a RGB light, each R, G,B channel can not be loaded with more than 60W. Please be sure each unit load is less than the max. load capacity, otherwise there is potential danger to destroy the controller.DC transformer/adaptor with adequate power is necessary responding to the load.


2.Constant voltage driving way is applied on the controller output drive. User should make sure the controller and running LED lights to have the same voltage, e.g. a 12V DC transformer is needed to power the controller if the LED light is12V DC, and a24V DC transformer is needed to power the controller if the LED light is 24V DC.
