Retro, Profile, Strand Patt 23, P23, 650W, Gold

Description

Retro lamp for decorationa and interior.
Function might not be 100% since the lack of spare parts, however we try to restore the units and make this retro fixtures as close to 100% as possible.

The Pattern 23 was the first mass-produced theatre spotlight in the World. Die-cast by the 5000 for a market in which a gross (144) was thought to be an outsize batch, it was destined to run for thirty years.

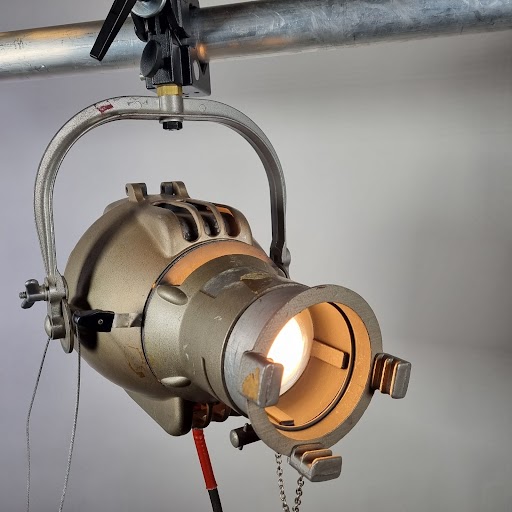

Small, compact lantern with a multitude of applications in stage lighting, picture lighting, shop window display, exhibition work and the like. It gives a clear-cut beam of any required shape and free of stray or ghost light.

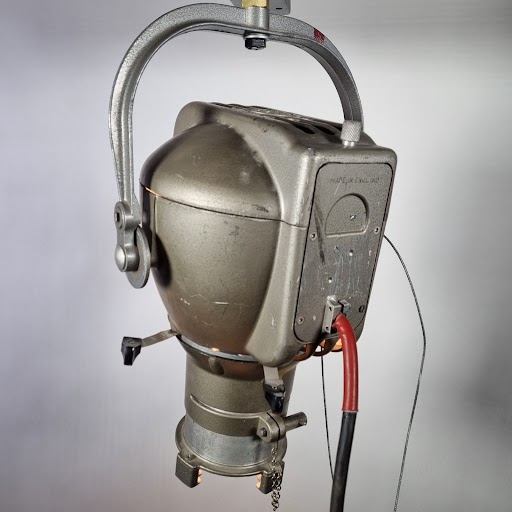

Ventilated die-cast aluminium body and lens tube assembly designed with medium prefocus lampholder. Body is hinged at the rear to give access for lamping and cleaning. Rear part carries a 7in diameter super pure anodised reflector and the front half a 7in diameter annular spherical reflector to collect light which would otherwise be masked off and wasted.

The light is directed onto a gate for diaphragm masks which are focussed hard or soft by an adjustable 3½in diameter, 5in focus p.c. lens in tube retained by safety chain. Four diaphragm masks with circular holes supplied as standard. Front of lens tube has runners for one metal colour frame.
