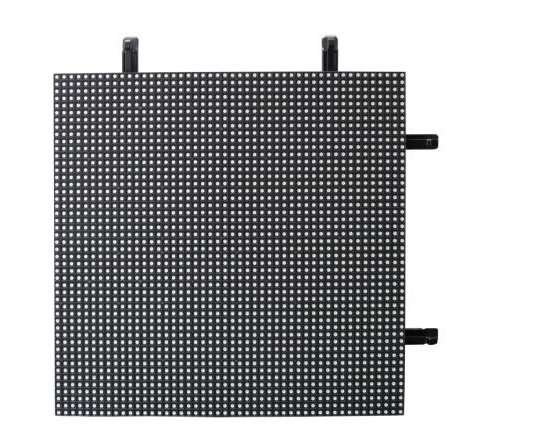

LED Cabinet, Sharp-10mm, 48x48cm, Outdoor

Description

Visual Parameter
Pixel Pitch 10mm
Brightness 7800nits
LED configuration SMD 5050 3in1
Pixel Density 10000 pixel/m2
Viewing angle (horizontal) 140°
Viewing angle (vertical) 140°
Recommended viewing distance 10m to 200m
Performance
Lifetime 100,000hours
Power consumption(Maximum) 180W
Power consumption(average) 90W
Processing 16-bit per color
Color 281trillion
Refresh rate 8700Hz
Scan mode static
Input voltage 90~ 260VAC, 50/60Hz
Mechanical
Cabinet material Aluminum
Protecting louver Aluminum
Weight 9.5kg
Mounting Rigging
Max rigging load 12 cabinets
Cabinet dimension 480 W * 480 H * 50MM D
Cabinet resolution 48 * 48
Load weight on surface N/A
Humidity range 10% to 99 %
Protection rating IP65 Front & Rear
Control Parameter
LED processor DBSTAR
Controlling distance 100m via CAT05 / Maximum 10km via Fiber Optic (Single mode)
Signal DVI up to UXGA, SDI, HD-SDI, HDMI, S-Video (Via Video processor)

The Sharpe series LED display screen meets all you need for any show.
It is probably the first design in the industry that integrated the same structure of indoor rigging, outdoor rigging and floor display. This special design will give you the most flexibility for any show, such as an indoor motor show, a concert touring with floor display, or an outdoor business event.
Furthermore, the Sharpe series LED display screen is made from integrated aluminum mold. This integrated design enables an efficient thermal conductivity and easy installation on its super slim body. Currently, the Sharpe series LED display screen includes 6mm indoor display, 10mm outdoor SMD display and 10mm floor display.
There are many reasons why our Sharpe series LED display screen is running far beyond other similar products in the industry.
Features
1. Full protection under harsh environment
The Sharpe series LED display screen is made from aluminum mold of strong and precise structure. Full waterproof cabinet with IP65 power and data connector enables its wide application through any events that take place indoor or outdoor.
2. Slim and light
It could be one of the thinnest LED displays in the industry, coming with a depth of only 50mm and a weight of only 9.5kg. You can carry two panels at one time. Your installation stuff could not be more satisfied.
3. Fan-less design makes a quite display
Thanks to the integrated mold design, the thermal conductivity is very good and we could get rid of fans cooling. This quite display is very important for some of your event like concert touring.
4. High power efficiency
Unlike most of the product in the industry, we designed a double layer power supply system which is connected with AC-DC and DC-DC. This system enhances the power transforming efficiency to a high level of 83%.
5. Easy and fast installation
The interlock system allows for fast and easy installation, no complicated tools needed.
6. Unbeatable color performances
10mm Sharpe series LED display screen is equipped with MBI5042 16bit diving IC, DBSTAR controlling system. The high refresh rate, vivid color processing guarantees you a high-end broadcasting show.
