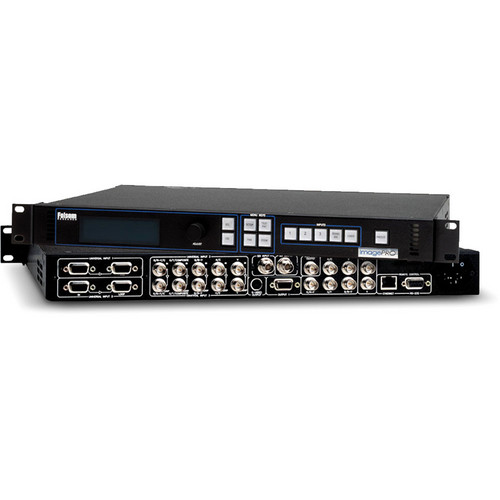

Scaler, Folsom, IMAGEPRO-3G

Start Price
217 EUR

Description

Barco ImagePRO-3G is a high performance Video Scaler, Scan Converter, Switcher and Transcoder all rolled into one. This unit can convert RGB, HDTV, component, s-video, composite (NTSC, PAL and SECAM) and HD/SDI video into a user-selectable video format. The ImagePRO includes 4 video outputs and 3 universal inputs, as well as a dedicated genlock BNC connector.

Input
Video Inputs 4 Inputs

Universal inputs:
(3) high-bandwidth video channels support RGBHV/RGBS/RGsB computer video, component video (SD or HDTV), S-Video, or composite video
Connectors:
Input 2 on 15-pin HD connectors with buffered loop-through. Input 3 on 5x BNC connectors with buffered loopthrough
Input 1 on DVI-I connector supports both universal analog and DVI input with loop-through
(1) 3G/HD/SD-SDI on a BNC connector
Input Video Resolutions VGA (640 x 480), SVGA (800 x 600), XGA (1024 x 768), SXGA (1280 x 1204), UXGA (1600 x 1200), WUXGA (1920 x 1200), 480p, 720p, 1080p, 1080i, 875 RS-343, 525 RS-170

Standard Resolution Video Input: NTSC, PAL, or SECAM
Horizontal Frequency 15-120 kHz
Vertical Frequency 25-120 kHz
Termination 75 Ohm
Sync Sync-on-Video, separate C or H/V via BNC connector
External Sync Genlock Input: Blackburst, computer H/V sync C-sync via BNC connector
Remote Control Ethernet connection (with TCP/IP) and RS-232 serial port for real-time control
Output
Video Outputs 6 Outputs

Connectors:
RGB or component video (SD or HDTV) on HD-15
RGB or component video (SD or HDTV) or composite video on 5x BNC
Composite video on BNC
S-Video on 4-pin mini-DIN connector
3G/HD/SD-SDI on a BNC connector
DVI output on DVI-D connector
Output Video Resolutions VGA (640 x 480), SVGA (800 x 600), XGA (1024 x 768), SXGA (1280 x 1204), UXGA (1600 x 1200), WUXGA (1920 x 1200). For Plasma Displays: 1280 x 768, 1365 x 768, 1365 x 1024. 480p, 720p, 1080p, 1080i. 875 RS-343, 525 RS-170. User-definable video output formats supported.

Standard Resolution Video Output: NTSC, PAL
Sync RGBHV, RGBS, RGsB, TTL level, Polarity selectable, HDTV. Tri-level Sync supported. 75 Ohm output impedance
General
Power Requirement 100-240V AC, 47-63 Hz
Operating Conditions Temperature: 32 to 104°F (0 to 40°C)
Humidity: 0-95% noncondensing
Dimensions Without Front Rackmount Hardware: 1.5 x 17 x 14" (3.8 x 43.2 x 35.6 cm)
With Front Rackmount Hardware: 1.5 x 19 x 14" (3.8 x 48.3 x 35.6 cm)
Weight 9 lb (4.1 kg)
